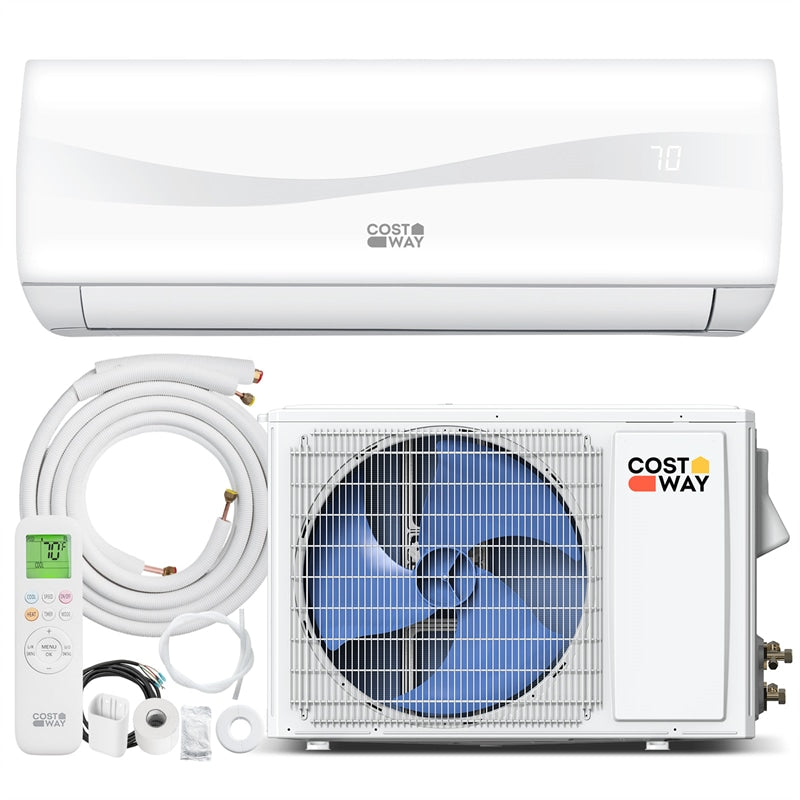

23000 BTU 19 SEER2 208-230V Mini Split Air Conditioner & Heater, Inverter Ductless AC Heat Pump System, Full Installation Kit, Cools up to 1500 Sq Ft

Our Service: 8 years Warranty for the compressor and 5 years for parts to ease your worries!

Enjoy year-round comfort with our high-performance 23000 BTU ductless mini split air conditioner heat pump system. Designed with advanced inverter technology, this energy-efficient ductless AC heat pump system effectively regulates temperatures in spaces up to 1500 sq. ft. With impressive 19 SEER2 and 8.5 HSPF2 ratings, it delivers powerful performance while reducing energy consumption. The mini split AC system cools down to 60℉ (16℃) and heats up to 90℉ (32℃), ensuring optimal comfort in every season. More than just an air conditioner, it also functions as a heater, dehumidifier, and fan, providing versatile climate control in one convenient unit. Packed with user-friendly features such as Sleep Mode, ECO Mode, 24-hour timer, remote control, child lock, 4D auto swing, chassis electrical heating, and self-cleaning, this ductless mini split AC heat pump system prioritizes convenience, safety, and ease of maintenance. With whisper-quiet operation, it creates a peaceful and comfortable indoor environment, perfect for working, sleeping, or relaxing at home.

Features

• Year-Round Comfort: This mini split air conditioner delivers 23,000 BTU of cooling for summer and 24,000 BTU of heating for winter, effectively covering spaces up to 1500 sq. ft. Choose from 7 modes (Cool, Heat, Dry, Fan, Auto, Sleep, ECO) and 5 fan speeds (Low, Mid, High, Turbo, Auto) to create your ideal indoor climate in every season.


• Higher Energy Efficiency: Equipped with advanced inverter technology, this ductless mini split air conditioner system precisely adjusts compressor speed to maintain consistent comfort while reducing energy consumption. With a 19 SEER2 cooling rating and 8.5 HSPF2 heating rating, it offers lower operating costs compared to traditional units.


• User-Friendly Design: Built with chassis electrical heating, the outdoor unit operates reliably in extreme temperatures, cooling up to 118.4℉ (48℃) and heating down to 5℉ (-15℃). The included remote control features an effective range of 26 ft, allowing you to easily adjust modes, fan speeds, 24-hour timer, 4D swing airflow, temperature units (℃/℉), and more.


• Ultra-Quiet Operation: With a noise level as low as 23 dB, plus Sleep Mode and a display-off function, this inverter mini split AC with heat pump ensures a peaceful and undisturbed rest. The built-in 24-hour timer allows customized scheduling while helping conserve energy.


• Easy Maintenance & Reliable Performance: The 137℉ (58℃) high-temperature self-cleaning function and removable, washable filters make maintenance simple and efficient. Additional features such as child lock to prevent unintended adjustments, while auto defrost ensures stable performance during winter.
  Note: Professional installation is required.

Specifications

• Color of Indoor Unit: White

• Color of Outdoor Unit: White

• Material: Metal, Aluminum, Plastic

• Indoor Unit Size: 44.57” x 9.13” x 12.99” (L x W x H)

• Outdoor Unit Size: 32.44” x 12.6” x 25.79” (L x W x H)

• Cooling Capacity: 23000 BTU

• Heating Capacity: 24000 BTU

• Heat Pump: 2 Ton

• Voltage: 208-230V~60Hz/1PH

• Max. Input Power: 3400W

• Max. Input Current: 16A

• Coverage Area: 1500 sq.ft.

• Air Flow Volume: 765 CFM

• Dehumidification Capacity: 124.8 Pints/Day

• Temperature Setting Range: 60℉~90℉

• Refrigerant: R32

• SEER2: 19

• HSPF2: 8.5

• Indoor Noise Level: 23 dB

• Gas Pipe Diameter: 5/8"

• Liquid Pipe Diameter: 1/4"

• Drain Hose Diameter: 0.67"

• Indoor Unit Net Weight: 30.86 lbs

• Outdoor Unit Net Weight: 70.55 lbs

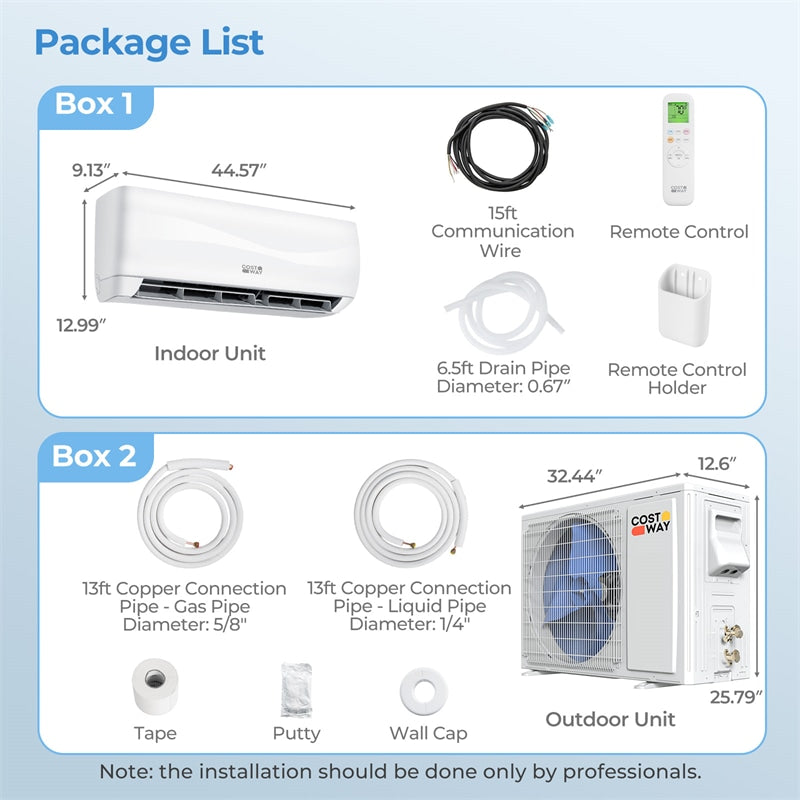

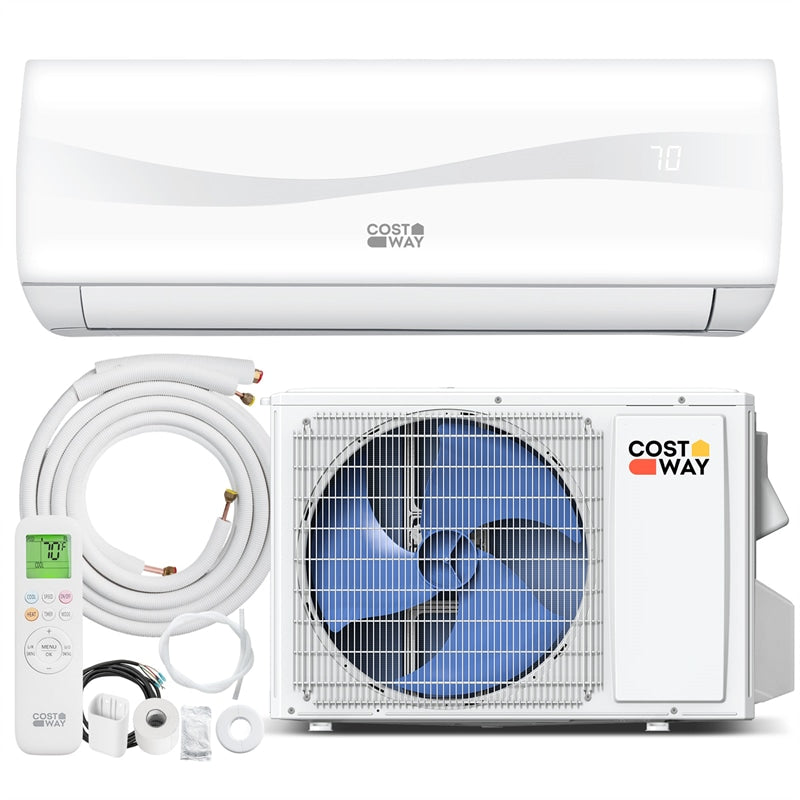

Package Includes

• 1 x Outdoor AC Unit
• 1 x Indoor AC Unit
• 1 x 4 m/13 ft Copper Connection Pipe - Liquid Pipe

• 1 x 4 m/13 ft Copper Connection Pipe - Gas Pipe

• 1 x 4.5 m/15 ft Communication Wire

• 1 x 2 m/6.5 ft Drain Hose

• 1 x Remote Control

• 1 x Remote Control Holder

• 1 x Tape

• 1 x Wall Cap

• 1 x Putty
• 1 x User Guide
